Microwave thermal analysis technology for waste salt

The waste salt undergoes pre-treatment such as vibration and crushing, and is sent to a microwave reactor for thermal analysis. Under temperature and oxygen control conditions, the unique characteristics of microwave energy volume heating, energy saving and consumption reduction, high energy utilization rate, and no secondary pollution are utilized to decompose, volatilize, and separate organic substances in the waste salt. The exhaust gas generated during the thermal analysis process is treated with exhaust gas and discharged to meet the standard. After treatment, the TOC can be reduced to below 10ppm, Meet the requirements of TOC limit and comprehensive utilization for entering the ion membrane.

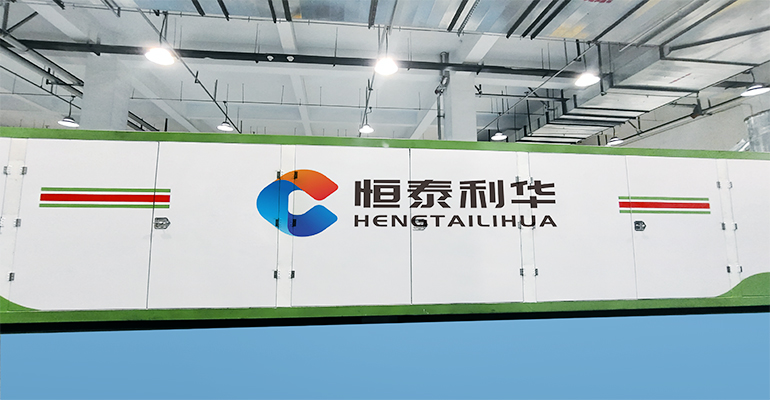

Characteristics of Integrated Equipment for Microwave Thermal Analysis of Waste Salt

02
Microwave, only requires electricity
01
Quick start stop, instant start stop
04
Low carbon emission reduction
03
Low exhaust emissions
02
skid-mounted
01
Low energy consumption
03
Small footprint
04
After processing, TOC decreases to below 10ppm
04
The equipment is corrosion-resistant, non coking, and salt particles do not agglomerate

Product series

Processing capacity

5t/d

10t/d

15t/d

30t/d

other

Equipment model

HTMW-S05

HTMW-S10

HTMW-S20

HTMW-S30

modularity、

Flexible combination

Power

240kW

300kW

360kW

720kW

operation energy consumption

300~400kW·h/t

300~400kW·h/t

300~400kW·h/t

300~400kW·h/t

Heating form

microwave

microwave

microwave

microwave

Processing method

Continuous

Continuous

Continuous

Continuous

Equipment footprint

150㎡(Main pry size: long10000*wide2400*tall2000

about180㎡(Main pry size: long13500*wide2400*tall2000

about240㎡(Main pry size: long16000*wide2400*tall2000

about300㎡(Main pry size: long16000*wide3500*tall2800

Applicable objects: Industrial waste salts generated from petrochemical, coal chemical, chlor alkali industry, metallurgy, etc(NaCL、KCL、Na2SO4class)
