Activated carbon microwave regeneration technology

Activated carbon microwave regeneration technology utilizes microwave energy to induce polar substance molecules (such as water molecules, organic compounds, etc.) adsorbed on activated carbon to undergo dipole polarization in the microwave field. In a short period of time, microwave energy is rapidly converted into heat energy, thereby enabling organic and water molecules adsorbed inside the pores of activated carbon to reach high-temperature activation conditions, leading to the decomposition, carbonization, and activation reactions between organic matter and high-temperature water molecules, The adsorption performance of activated carbon can be restored, thereby achieving the effect of comprehensive utilization of activated carbon.

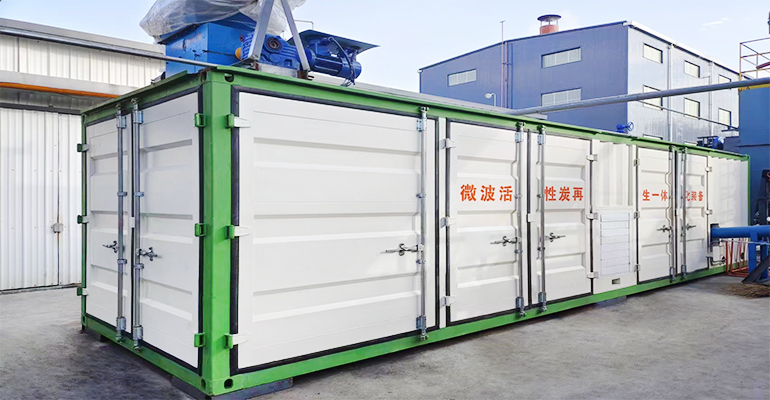

Characteristics of integrated equipment for microwave regeneration of activated carbon

02
Microwave, only requires electricity
01
Quick start stop, instant start stop
03
Low exhaust emissions
04
Short regeneration time and high regeneration efficiency (microwave has an activation effect)
02
Accurate temperature control, low regeneration energy consumption
01
Leveraging and occupying a small area
03
Sealed and dust-free, clean production
04
Low carbon loss rate (particle carbon<3%, powder carbon<10%)
04
Good regeneration effect, adsorption capacity recovery rate ≥ 90%

Product series

Processing capacity

5t/d

10t/d

15t/d

other

Equipment model

HTMW-C05

HTMW-C10

HTMW-C15

Modularity、

Flexible combination

Power

240kW

300kW

360kW

operation energy consumption

300~450kW·h/t

300~450kW·h/t

300~450kW·h/t

Heating form

microwave

microwave

microwave

Processing method

Continuous

Continuous

Continuous

Equipment footprint

about150㎡(Main pry size: long10000*wide2400*tall2000

about180㎡(Main pry size: long13500*wide2400*tall2000

about220㎡(Main pry size: long16000*wide2400*tall2000

Applicable objects: powdered activated carbon, granular activated carbon, columnar activated carbon, honeycomb activated carbon
